Ultrasonic Screening Machine

DHSF-U1

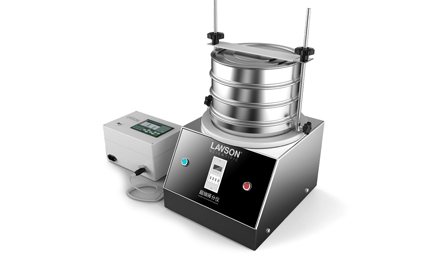

Ultrasonic vibrating screen
Sieve specification: 20-1000 mesh, output frequency: 30KHz-40KHz.

DH series ultrasonic fine vibration screen is a high-precision and high-stability ultrasonic vibration screening machine developed by Ningbo Everses, which introduced German technology.

Product Introduction
DH series Ultrasonic vibrating screen is a high-precision and high-stability ultrasonic vibration screening machine developed by Ningbo Luoshang with German technology. It uses the intelligent ultrasonic controller designed by Professor Cui of Shanghai Jiao Tong University, and is assembled with imported original components that are finely tuned and combined, changing the non-adaptability and non-adjustability brought about by a single frequency, and truly achieving the organic combination of CNC and vibration screening. Its performance level reaches and surpasses that of international similar products, completely surpassing domestic products!
DH series ultrasonic fine vibration screen solves the screening difficulties of strong adhesion, easy agglomeration, high static electricity, high fineness, high density, and low bulk density, and has outstanding performance! It achieves a great breakthrough in performance.
Screening accuracy of the DH series ultrasonic fine vibration screen can be improved by 1-100%, and the output can be increased by 1-20 times. It truly meets the industrial production needs above 600 mesh!
Ultrasonic fine vibration screening instrument can be widely used in industries such as pharmaceuticals, metallurgy, chemical industry, mineral processing, and food.

Working principle
Ultrasonic fine vibration screen consists of an ultrasonic generator, transducer, resonance ring, resonant screen frame, and vibration platform. For better performance, please use it with matching equipment and do not mix it with other ultrasonic devices.
High-frequency electrical signal generated by the ultrasonic generator is converted into a high-frequency sinusoidal longitudinal oscillation wave by the transducer. These oscillation waves are transmitted to the resonance ring to make it resonate. The resonance ring then uniformly conducts the high-frequency vibration to the entire screen surface. While the material is vibrating at low frequency on the screen, a high-frequency ultrasonic vibration is superimposed to solve the problem of material blockage and improve the screening accuracy and efficiency.

Working principle

Ultrasonic fine vibration screen consists of an ultrasonic generator, transducer, resonance ring, resonant screen frame, and vibration platform. For better performance, please use it with matching equipment and do not mix it with other ultrasonic devices.

High-frequency electrical signal generated by the ultrasonic generator is converted into a high-frequency sinusoidal longitudinal oscillation wave by the transducer. These oscillation waves are transmitted to the resonance ring to make it resonate. The resonance ring then uniformly conducts the high-frequency vibration to the entire screen surface. While the material is vibrating at low frequency on the screen, a high-frequency ultrasonic vibration is superimposed to solve the problem of material blockage and improve the screening accuracy and efficiency.

Application Scope
\| Separation, classification, determination of particle size
\| Suitable for dry or wet screening of any freely flowing dispersed material; grading of solid particles
\| Agriculture, soil, coal, synthetic materials, chemicals, geology, metallurgy, building materials, environment, resources, glass, ceramics, biology, etc.
\| Laboratories in industries such as pharmaceuticals, metallurgy, chemicals, mining, and food

Table of Common Particle Size Mesh and Micrometer Comparison
Mesh Number	Micrometer
20	850
25	710
30	600
35	500
40	425
45	355
50	300
60	250
70	212
80	180
100	150
120	125
140	106
170	90
200	75
230	63
270	53
325	45
400	38
450	32
500	25
635	20

Technical Parameters
Model:	DHSF-U1
Output Frequency:	30KHz～40KHz
Sieving Machine Power:	120W
Ultrasonic Power:	30-150W
Sieving Machine Rotation Speed:	1440r/min
Sieve Specification:	20～1000 mesh
Sieve Diameter:	200mm
Sieve Layer:	1-7 layers (customized according to customer's requirements)
Total Weight:	30kg
Dimensions:	330390760mm
Operating Temperature:	-15℃～65℃
Input Current:	0.1A～0.3A
Input Voltage:	220±10% 50～60Hz

Precautions
1. Characteristics of the tested materials. It is usually used to test powdery and granular materials with good fluidity. If the material has certain stickiness, agglomeration, or adsorption, please specify when selecting the appropriate model.
2. The feeding amount is generally within 300g to avoid affecting the screening accuracy due to excessive material.
3. The feeding particle size is generally between 0.038-3mm.

Single Page - Color Page
Name:	Author:	Action:
Ultrasonic vibrating screen DHSF-U1	Vortexer	Download

Related products
Name:	Model:
Ultrasonic vibrating screen	DHSF-U1
three-dimensional electromagnetic vibrating sieve	DHSF-200H
Electromagnetic high-frequency vibrating screening machine	DHSF-200

Product List

DHSF-U1	Unit
Host Machine	Unit
Sieve frame (customized according to customer sele	layer
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; 1～7; 1; 1; 1; 1
